AT-2 9 00 Dolby Atmos
Integrated Amplifier AV Receiver
Der AT-2900 ist ein AV-Receiver mit integriertem Verstärker, der Dolby Atmos, DTS:X, Dolby Vision, HDR, 4K und alle zugehörigen Formate unterstützt. Er bietet 14 unabhängige Kanäle mit drei Subwoofer-Ausgängen für die Lautsprecherkonfigurationen 7.3.6 oder 9.3.4. Die Lautstärke jedes Kanals, inklusive Subwoofer, lässt sich separat regeln. Zu den weiteren Funktionen gehören HDMI 6 Eingänge und 2 Ausgänge, eARC, Bluetooth, TF-Karten- und USB-Anschluss, OSD-Menü, RS232, App-Steuerung, automatische Raumkalibrierung und vieles mehr. Der AT-2900 ist ein multifunktionaler AV-Receiver für High-End-Heimkino. Als eine der zehn führenden Audiomarken in China verfügt Tonewinner über mehr als 30 Jahre Erfahrung in der Entwicklung und Herstellung von Akustikprodukten. Als Originalhersteller begrüßt Tonewinner stets herzlich Distributoren, Partner und Kunden weltweit.
Modell
AT-2900Kanäle
7.1.6/9.1.4Leistung
13*140WGW
18KGAT-2 9 00 Dolby Atmos
Integrated Amplifier AV Receiver
Root in China, welcome the world.
The firmware and software are designed and written by Tonewinner’s own designers with original source code and patents, and all products are produced by one standard in strict management. Handling AC 110V to 230V power supply voltage, this AV receiver offers pleasing audio video entertainment to the world.
Dolby Atmos & DTS:X Decoding
It supports Dolby Atmos and DTS:X decoding bringing 3D sound quality with more depths and details. It supports 14 channels independent decoding working with three subwoofer outputs to achieve up to 9.3.4 or 7.3.6 speaker placement. It offers independent volume control to each channel including subwoofers. It can used as an independent preamplifier to work with an amplifier and subwoofers to bring more stunning sound.
3D Sound for Immersive Experience
With professional DSP manipulation, sound spots of traditional stereo and multi-channel tracks are accurately captured, and non-Dolby Atmos non-DTS:X audio sources are processed and transmitted out as 3D sound quality as far as possible.
4K HD for Clearer Vision
4K high definition vision gives you diving experience into high quality sound and images whether you’re watching movies, gaming and listening.
HDR for Higher Dynamic Range
HDR enables your HDR content on HDR-compatible display devices to get brighter, darker and show more shades of gray in between that can vastly improve your video source.
HDMI eARC & HDMI 6 In 2 Out
The HDMI eARC simplifies connectivity and provides greater ease of use for multiple components discovery and brings enhanced audio details and depths.
Original Easy Test EQ
Auto Acoustic Test Smart Calibration
The Easy Test EQ ( ETQ ) is originally designed by Tonewinner and has been used in most of its products. The auto and also manual acoustic tests give you choices, convenience and profession.
High Power Output
120W/8Ω and 200W/4Ω per channel power output brings you expressive and boomy sound experience. High power out is prepared for the young at your heart.
15 Meters Wireless Bluetooth
High-speed and stable Bluetooth connection. Low distortion, low energy consumption and low latency. Easy connectivity and auto-re-connectivity. Switch any music apps and platforms you want.
Digital Signal Inputs
It supports optical, coaxial and USB Audio inputs for multi-channel music formats including DTS 5.1 so as to brings realistic 3D sound field & range and create expressive symphony-like effect for your entertainment.

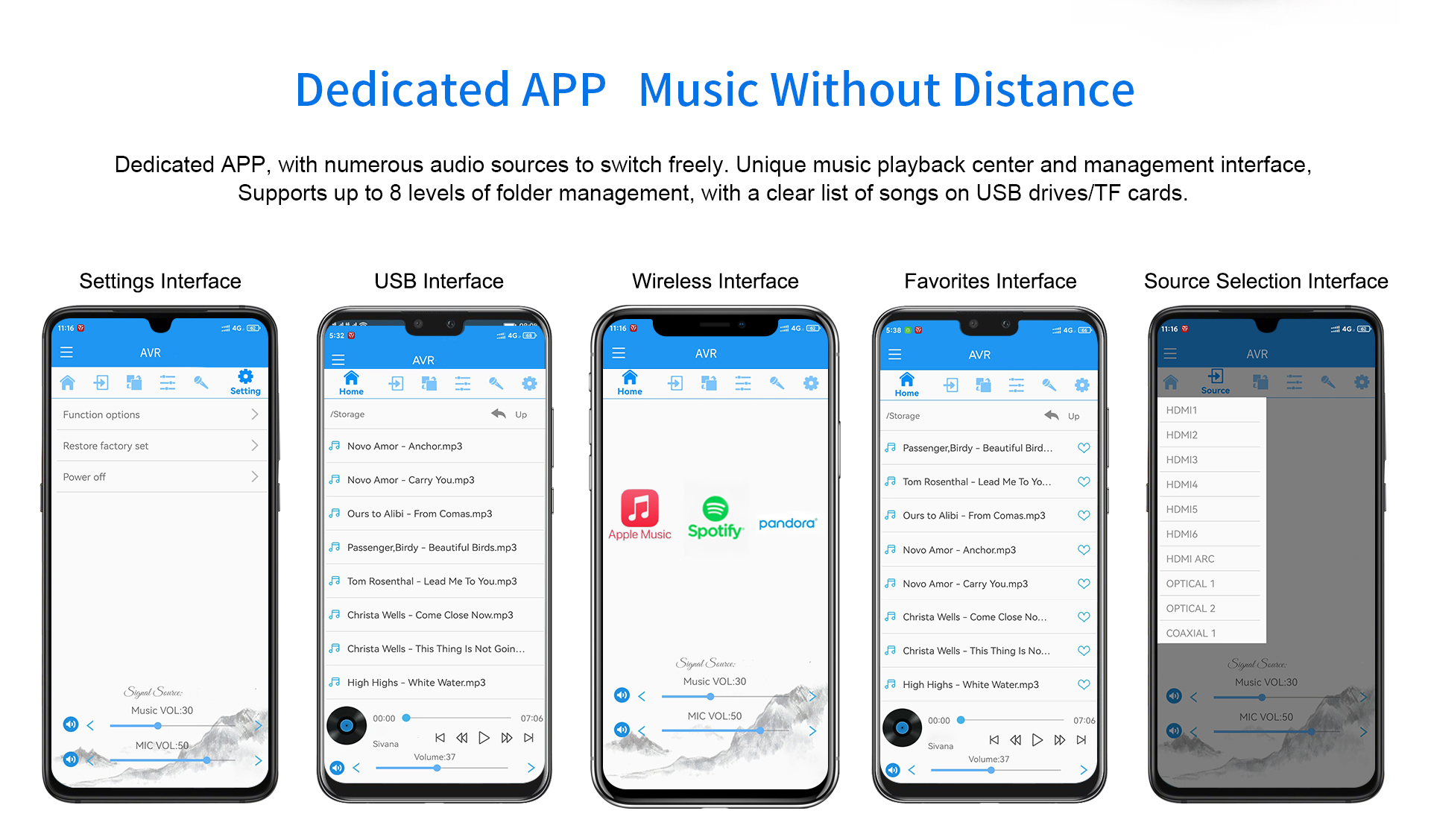

Original Mobile Phone APP Control
OSD English Menu
Simple menu for easy controlling and setting. You can adjust the parameters for better sound effect on screen when the machine is working.
9 Channels Speaker Outputs
It supports 14 channels decoding with 3 subwoofer output jacks, and 9 channels speaker outputs so as to achieve 3.1/5.1/7.1/5.1.2/5.1.4/7.1.2/7.1.4/7.1.6/7.3.6/9.1.4/9.3.4 speaker placements. It support independent volume control for every channel, including three subwoofers.

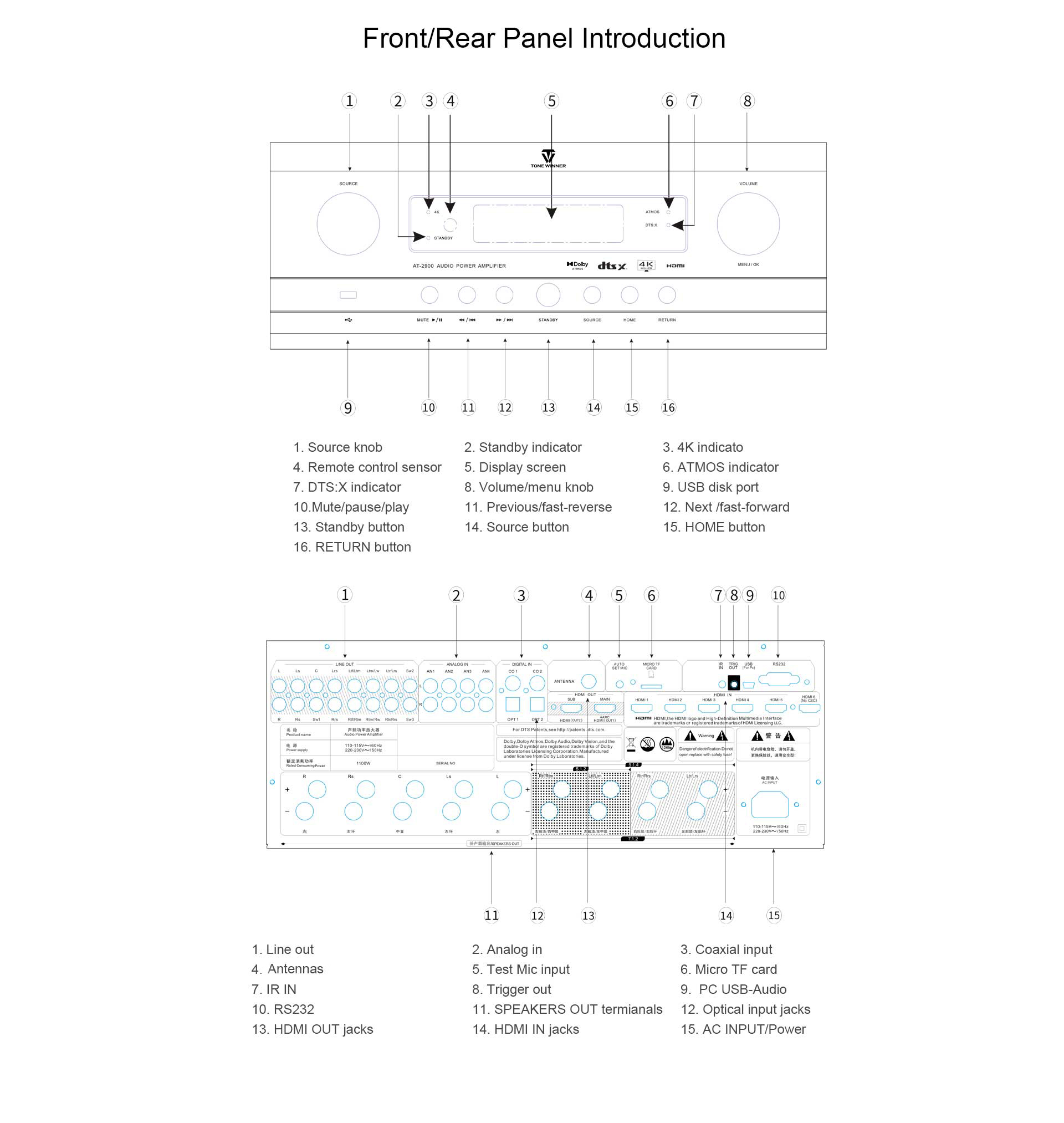

Multiple Connections
It supports HDMI 6 in 2 out, eARC, optical & coaxial inputs, USB disk, TF card, PC USB-Audio , Bluetooth, 5V trigger out, IR input and RS232 protocol.
Hi-Fi Circuit
With quality components, the audiophile-level circuit gives
strong support to achieve professional sound quality.
Main Features
1. Support Dolby Atmos, DolbyTrue HD and all backward Dolby audio formats.
2. Support DTS:X, DTS-Master and all backward DTS audio formats.
3. Support Dolby Vision and HDR 10 video signal.
4. Support 4K/60Hz, RGB4:4:4, 18GHz bandwidth HD video signal.
5. Support HDMI2.1, HDCP2.2.
6. HDMI 6 in 2 out, 2 way coaxial, 2 way optical and 4 way analog inputs.
7. HDMI eARC and CEC.
8. Support RS232 protocol.
9. 14 channels decoding and three subwoofer outputs to achieve 2.0 to 7.3.6 or 9.3.4 speaker placement.
10. Independent volume control for each channel including subwoofers.
11. Auto EQ room testing and compensation of speaker distance, delay & sound pressure.
12. Independent EQ settings and parameter storage for each input channels.
13. Built-in digital Bluetooth audio receiver.
14. Built-in music playing device; support multi-level folder arrangement of music files from TF card & USB disk; support lossless & compressed audio formats including FLAC, APE, WAV, MP3, etc.
15. Support original App control.
16. Support OSD layer menu.
17. Synchro-reading and display of music lists on mobile phone and TV.
Hauptmerkmale
1. Unterstützt Dolby Atmos, Dolby True HD und alle abwärtskompatiblen Dolby-Audioformate.
2. Unterstützung für DTS:X, DTS-Master und alle abwärtskompatiblen DTS-Audioformate.
3. Unterstützt Dolby Vision und HDR 10 Videosignale.
4. Unterstützt 4K/60Hz, RGB4:4:4, 18GHz Bandbreite HD-Videosignal.
5. Unterstützt HDMI 2.1 und HDCP 2.2.
6. HDMI 6 in 2 out, 2-Wege-Koaxial-, 2-Wege-Optik- und 4-Wege-Analog-Eingänge.
7. HDMI eARC und CEC.
8. Unterstützung des RS232-Protokolls.
9. 14-Kanal-Dekodierung und drei Subwoofer-Ausgänge zur Realisierung einer Lautsprecheraufstellung von 2.0 bis 7.3.6 oder 9.3.4.
10. Unabhängige Lautstärkeregelung für jeden Kanal, einschließlich der Subwoofer.
11. Automatische EQ-Raumprüfung und Kompensation von Lautsprecherabstand, Verzögerung und Schalldruck.
12. Unabhängige EQ-Einstellungen und Parameterspeicher für jeden Eingangskanal.
13. Eingebauter digitaler Bluetooth-Audioempfänger.
14. Integriertes Musikwiedergabegerät; unterstützt die mehrstufige Ordnerstruktur von Musikdateien von TF-Karte und USB-Festplatte; unterstützt verlustfreie und komprimierte Audioformate einschließlich FLAC, APE, WAV, MP3 usw.
15. Unterstützung der Steuerung über die Original-App.
16. Unterstützung des OSD-Layer-Menüs.
17. Synchrones Lesen und Anzeigen von Musiklisten auf Mobiltelefon und Fernseher.
